The Summit Pinnacle Camper Trailer is our upgraded top-of-the-line, toughest, high-clearance 4-person teardrop trailer, designed for getting you out as far out into nature as your overland vehicle can handle.
With the Summit Pinnacle Camper Trailer, we took our classic Summit 4-person teardrop camper model and added specific upgrades to enable it to hold its own in the most demanding off-road, backcountry environments.
The Summit Pinnacle Trailer is an upgraded edition of our Summit trailer that includes the following:
These features allow this Teardrop to hold its own in even the most demanding off-road terrain.
The Summit Pinnacle camper trailer effortlessly converts from sleeping mode to indoor dining mode with couch seating, features a table that stores in your under-floor storage, and a generous galley space for cooking and storage.
A built-in star-gazer window allows you to enjoy camping under the stars.

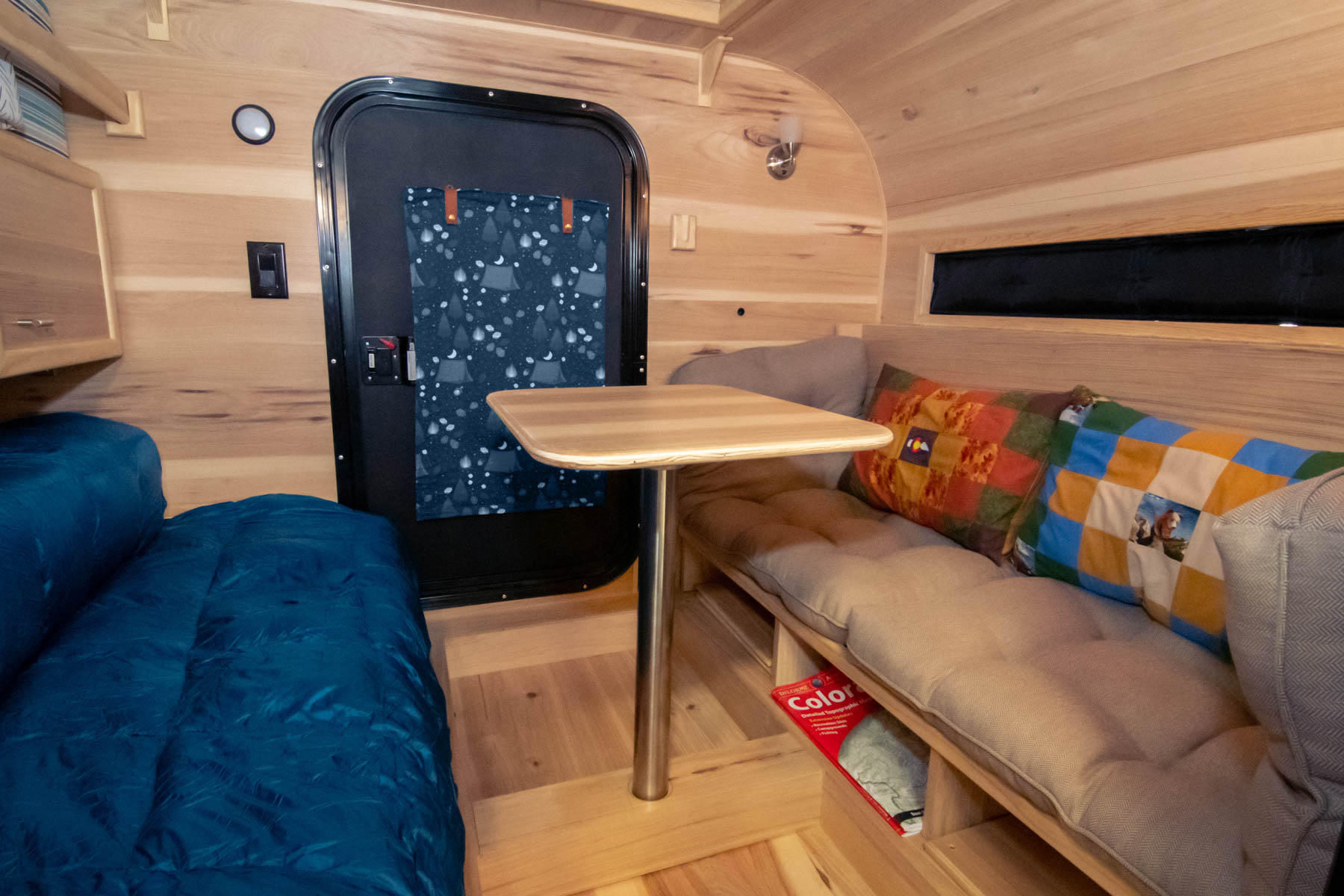

A teardrop trailer that sleeps four, the Summit Pinnacle cabin is designed around a Queen-sized mattress and two bunk beds, which all convert effortlessly from sleeping mode into dining mode with a couch for four, with a table that stores in the under-floor storage when not in use.
Hickory hardwood creates a warm and inviting interior, with under-floor storage and plenty of shelving helps keep your family organized. The large stargazer window provides plenty of light, along with the 2 doors with operable sliding windows.

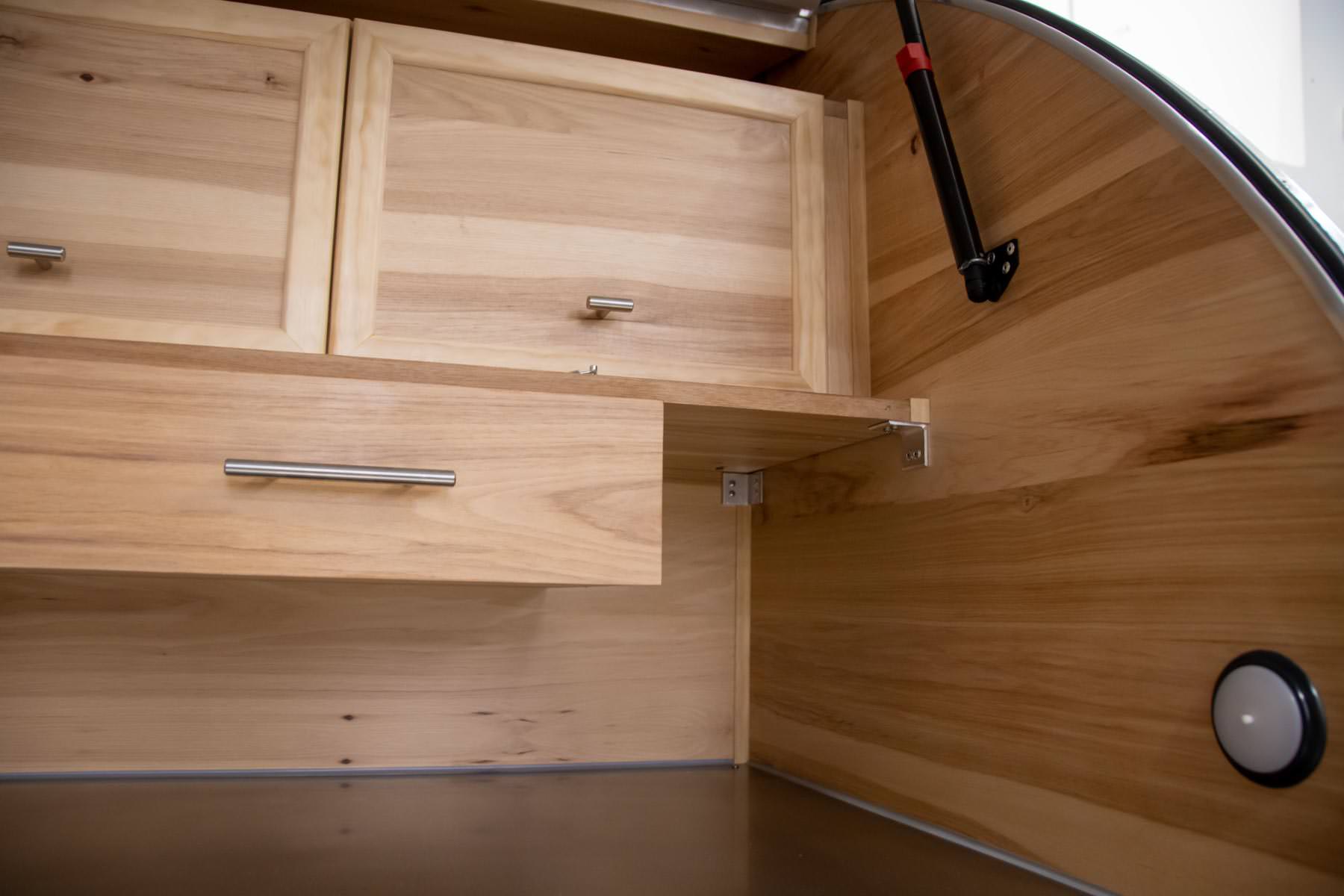

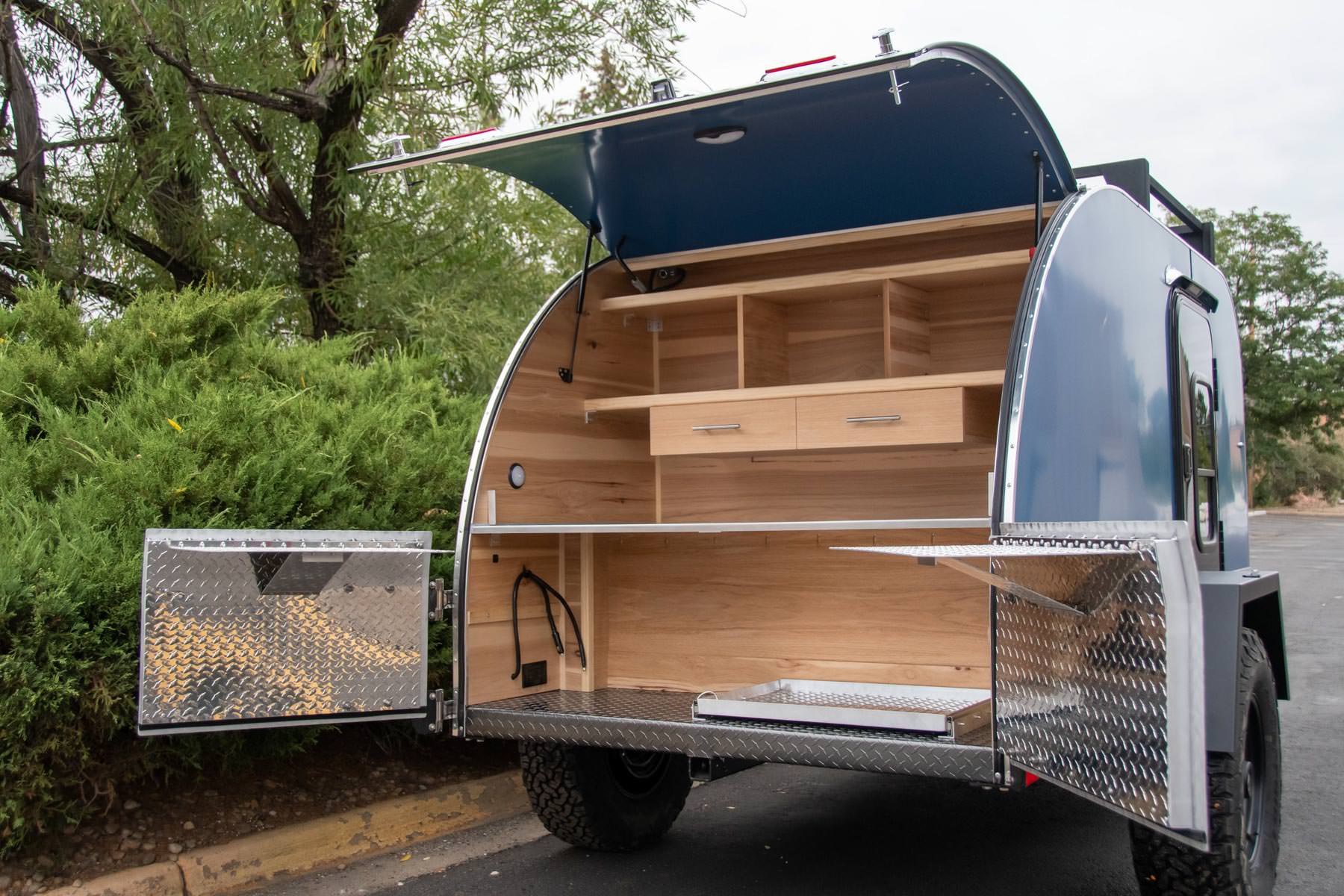

The rear hatch opens to a massive kitchen galley in hickory hardwood, with organized storage for your kitchen gear. The galley’s two back hatch doors open up with additional fold-out shelves that provide even more counter space, and reveal the rugged diamond-plated under-counter storage, with room for a couple Yeti coolers, water, stove, and food storage to feed the whole gang.
Both the Summit Pinnacle and the Mt. Massive teardrop campers are based on the same large cabin size. However, the Summit Pinnacle is our biggest, baddest, most off-road capable teardrop camper trailer. The Mt. Massive is our lightest four-person camper trailer designed for tow vehicles with lower clearances and towing ratings.
The cabin frame is constructed using welded structural aircraft aluminum for an extremely tough, durable, and lightweight cabin. The bottom of the cabin is protected and sealed from the elements.
The cabin frame is triple-insulated for a combined R13 insulation value to keep you comfortable across a wide range of temperatures.
Once insulated, the Summit Pinnacle trailer is sided, or “skinned”, with clear anodized aluminum.

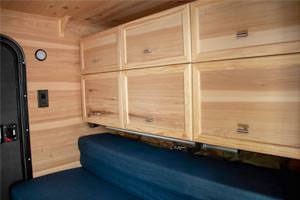

The teardrop cabin interior uses maple or hardwood laminates, and is free of plastic cabinets and shelving.
Two locking insulated doors with screened sliding windows open the cabin to the great outdoors, and lock it up tight.
Our Summit Pinnacle trailers sit on a strong welded tubular steel frame that is capped and powder-coated to prevent corrosion. We add a 2” trailer hitch receiver to the back of the frame for your bike rack or other hitch-enabled accessories.
These materials and building techniques are impervious to water and weather damage for decades. Colorado Teardrops are built to last generations.
Personalize your Summit Pinnacle trailer with different finishes and colors, and other accessories for a glamorous camping experience including battery power for electrical options such as LED lights and 110 outlets; a roof rack; 270-degree awnings; in-floor water storage; on-demand hot water; exterior dining table and many other options.
Clicking the image below will open a new browser window with a 3D panoramic tour of our four-person rugged, off-road Summit model with the Pinnacle upgrade.
| Specifications | |
|---|---|
| Number of People: 4+ | Best Use: Paved / Rugged 4WD |
| Sleeping Arrangements | |
| Bed Size: Queen 58″ x 78″ | Bunk beds: 2 |
| Length | |
| Body Length: 126" | Overall Length: 173" |
| Width | |
| Cabin Interior Width: 58" | Overall Width: 88" |
| Height | |
| Cabin Interior Height: 57" | Overall Height: 85.5" |
| Galley Dimensions | |
| Galley Counter Height: 41″ | Galley Hatch/Open Height: 81″ |
| Weight | |
| Trailer Dry Weight: 1850 lbs.* | Tongue/Dry Weight: 220 lbs.* |
| Tire and Wheel Size | |
| Tire size: 33” Off-Road | Wheel size: 17” |
| Suspension Rating and Clearance | |
| Suspension Rating: 3,500 lbs | Frame/ Ground Clearance: 21” |
| Hitch and Skidplate | |
| Trailer Hitch: Axle-less Timbren | Skidplate: Powder-coated Steel |
| Fenders | |
| Skidplate: Powder-coated Steel | Weight-bearing: Yes |
| Specifications are subject to change without notice * Weight may change with options |
|
Your adventure consultant will take you through all available options during your estimate consultation.
The following are the most common upgrades and options.
| Upgrades | Details | Price |
|---|---|---|
| Electrical wiring package | Wiring package with 7 interior LED lights, 2 exterior lights, 2 USB/12V plugs, a 3-speed/reversible fan, 2 12V plugs, 110V ship-to-shore exterior plug with 2 GFIs and an exterior solar port to charge your battery (solar panel and battery not included). | $790 |
| Battery and Solar Panel Options | Click here to see options | See Options |
| Air Conditioning Unit – Dometic RTX 2000 | In-roof A/C unit. The Dometic RTX 2000 is a 2,000 watt / 6,824 BTU Air Conditioner to keep you cool and comfortable in hot climates. Requires electrical wiring package and a battery system with an inverter that allows for 2,000W of continuous power. Selecting this option may result in limiting other options and upgrades. | $3,250 |
| Truma VarioHeat Comfort Heater | The Truma Varioheat luxury propane heater is perfect for teardrop trailers. This unit in combination with the full insulation on your trailer ensures comfortable 4-season camping down to almost any temperature. | $2,450 |
| Black Trailer Tongue Toolbox | Convenient storage on the tongue of your A-frame trailer. The aluminum diamond plate box is equipped with a locking paddle handle to deter theft, and the one-piece front, back and bottom construction provides maximum strength and durability for years to come. | $490 |
| 11.6 Gallon On-board Water Tank | Includes on-board 11.6 gallon fresh water tank, electric pump, exterior mount for included faucet and collapsible sink, and “City Water” hose (garden hose) to fill. | $650 |
| On Demand Hot Water/Shower | Comes with instant hot water, shower nozzle and pelican box for exterior mounting | $575 |
| Queen size, 4” memory foam mattress | Comfy and folds into a couch | $300 |
| Exterior Colors | Many color options available – Make yours unique! | $700 |
| Spare Tire | Spare tire with tire mount | $960 |
| Colorado Teardrops Roof Rack | Made of the same structural aircraft aluminum used to construct the cabin. Tall enough to allow the roof vent to open and strong enough to support a roof top tent. | $875 |
| Stainless Steel Galley Shelf | Cover your main galley shelf with tough, durable stainless steel | $435 |
| Propane 11 lbs. tank and stainless steel side mount | Placed behind and protected by the tough, off-road fenders. | $310 |
| Exterior Dinning Table for 4 | Mounts to your fender at 30″ and has level adjuster. Stores under your mattress or couch when not deployed | $270 |
Photos below represent different colors across our various models.
Please inquire about the availability of your favorite colors.
